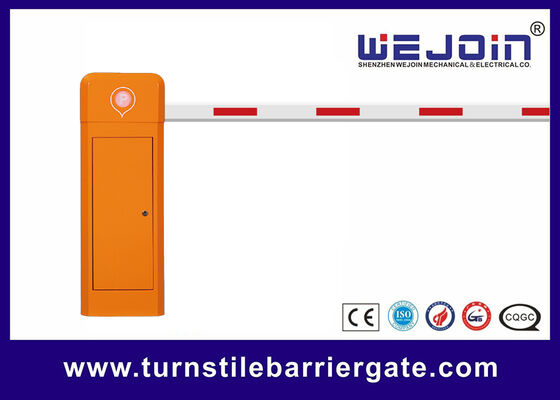

Automatic Barrier Gate Equipped with DC24V Variable Frequency Motor and 6m Straight Boom for Stable Barrier Control
The boom barrier gate is equipped with a DC variable frequency motor, combined with a heavy-duty connecting rod transmission mechanism and a balancing spring system. This optimized drive design ensures smooth, stable, and reliable operation for high-frequency vehicle access applications.
To enhance operational safety, the barrier gate incorporates an automatic reversing function. When the boom encounters an obstacle during the closing process, it immediately reverses direction to help prevent damage and improve safety for vehicles and pedestrians.
The controller supports multiple external safety accessories, providing comprehensive anti-crash protection.
The controller includes a built-in DC12V power supply, allowing external devices such as radar sensors to be powered directly, simplifying wiring and installation.
The barrier gate provides multiple communication options for intelligent parking systems and access control integration.
RS485 offline communication enables multiple barrier gates to operate synchronously without requiring a central controller, making it suitable for dual-lane and multi-lane entrances.
An optional Bluetooth module is available for wireless setup and diagnostics. Using a smartphone or tablet, users can configure parameters and perform debugging through a dedicated mobile application or mini-program.
The barrier gate features a large LCD display with an intuitive English visual menu. This user-friendly interface simplifies parameter settings, function selection, and troubleshooting, making on-site commissioning easier for installers and operators.
The wire control interface can be used by parking management systems or external controllers to operate the barrier gate.
During boom closing, when the "Infrared Photocell Interface" and "GND" are short-circuited, the boom will immediately reverse and lift automatically.
During boom closing, when the "Loop Detector Interface" and "GND" are short-circuited, the boom will reverse and lift. After reaching the fully open position, the boom will automatically close when the signal is disconnected.
The RS485 communication interface allows the barrier gate to be controlled and monitored by a computer or parking management system.
| Model | WJCB01VF-H | WJCB01VF-I |
|---|---|---|
| Running Speed | 1-4S | 2-6S |
| Boom Type | Straight | Straight |
| Max Boom Length | 4.5M | 4M~8M |
| Input Voltage | AC100-265V | |
| Frequency | 50/60HZ | |
| Motor Voltage | DC24V | |
| Enclosure Rating | IP54 | |
| Working Temperature | -30°C ~ +70°C | |
| MTBF | 6000000 times | |
| Traffic Flow Application | 24 hours uninterrupted operation | |
| Max Motor Power | 240W | 180W |
| Max Motor Speed | 500r/min | 360r/min |
| Max Torque | 280N.m | 320N.m |
