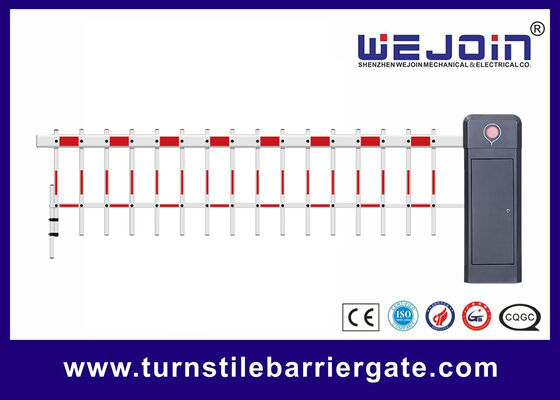

Automatic Barrier Gate Equipped with 6m Straight Boom and DC24V Variable Frequency Motor for Traffic and Parking Management
| Function & Parameter Details | |
| 1 | Adopts DC variable frequency control motor drive, equipped with connecting rod transmission mechanism and balance spring for stable and reliable operation; motor service life up to 6 million times, spring service life 500,000 times |
| 2 | With auto-reversing on obstacle function, the boom will reverse automatically when encountering an obstacle during the closing process |
| 3 | Supports external radar, ground coil and infrared anti-smashing function; built-in DC 12V power output, available for power supply of external radar |
| 4 | Supports RS485 communication or RS485 offline connection mode |
| 5 | Optional Bluetooth module, convenient debugging of the barrier gate via mini-program |
| 6 | Equipped with a large LCD screen with an English visual menu, easy for function selection and debugging operation |
| 7 | Support interchange of left and right installation modes |
Barrier Gate Controller Interface Explanations
Wire Control Interface:
This interface is available for parking system, also available for external controller to control barrier gate.
UP: Short circuit “UP” and “GND”
Down: Short circuit “Down” and “GND”
Stop: Short circuit “Stop” and “GND”
Anti-smashing Interface:
Infrared Photocell: boom will lift up when short circuiting “Infrared photocell interface” and “GND” during boom down.
Loop Detector: boom will lift up when short circuiting “loop detector interface” and “GND” during boom down; in up limit position, boom will fall down automatically after these two interfaces disconnected.
RS485 Communication Interface :
It is used for controlling the barrier gate or checking the status of the barrier gate by computer or system; also used for online controlling the paired barrier gates synchronously.
1. Working temperature (motor): -30℃~ + 70℃
2. Power supply input voltage: AC110±10%, or AC220V±10%
3. Controller input voltage: DC24V±10%, 10A
4. Motor power: 240W MAX
5. Relative Humidity: 30%~80%, No condensation
6. Distance of remote control: L≥30M
7. Running Speed: 2~6 seconds adjustable
8. MTBF: 6,000,000 times
