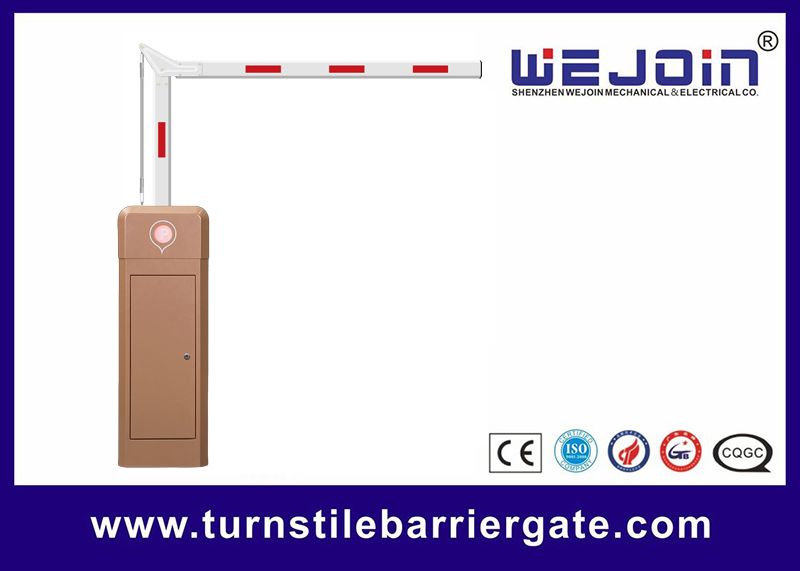

Name: Automatic Barrier Gate System Traffic Boom Vehicle Barrier Gate 90 Degree Folding Boom
Brand: Shenzhen Wejoin Mechanical & Electrical Co.
SKU: CB01VF-I
Price: 475.00 USD
Availability: InStock

풍모 갤러리 제품 설명 따옴표를 요구하십시오

풍모

제품 사양

붐 유형: 90도 접이식 붐

전압: AC 110V-265V

붐 길이: 최대 6m (맞춤형)

보증: 2년

하우징 색상: 금

어플리케이션: 주차장

강조하다:

automatic barrier gate with 90 degree folding

traffic boom barrier gate system

vehicle barrier gate automatic system

기본 정보

원래 장소: 중국

브랜드 이름: WEJOIN

인증: CE ISO

모델 번호: CB01VF-I

결제 및 배송 조건

포장 세부 사항: 판지 상자

배달 시간: 지불을받은 후 15 일

지불 조건: 티/티

공급 능력: 10000 세트/월

갤러리

Automatic Barrier Gate System Traffic Boom Vehicle Barrier Gate 90 Degree Folding Boom

제품 설명

Automatic Barrier Gate System Traffic Boom Vehicle Barrier Gate 90 Degree Folding Boom

Vehicle Barrier Gate Functions & Features

1). DC24V brushless motor, with stable and reliable worm gear and planetary reduction transmission structure, large torque, and wear resistance.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display, displays more information.
10). NO/NC wire control signal input are optional.
11). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.

Mechanism Structure

Automatic Barrier Gate System Traffic Boom Vehicle Barrier Gate 90 Degree Folding Boom 0

Vehicle Barrier Gate Warranty and Service Items

Free service is offered for component parts in one year warranty time.

(not includes the barrier boom or remote)

Lifetime service with charge accordingly.

Technical questions are supported.

Vehicle Barrier Gate Technical Data

Model	WJCB01VF-H	WJCB01VF-I
Running Speed	1-4S	2-6S	6S	6S	6S	6S
Boom Type	Straight	Straight	90° Folding	180° Folding	2 Fence	3 Fence
Max Boom Length	4.5M	4M~8M	5M	4M	4.5M	4M
Input Voltage	AC100-265V
Frequency	50/60HZ
Motor Voltage	DC24V
Enclosure Rating	IP54
Working Temperature	-30°C ~ +70°C
MTBF	6000000 times
Traffic Flow Application	24 hours uninterrupted operation
Max Motor Power	240W	180W
Max Motor Speed	500r/min	360r/min
Max Torque	280N.m	320N.m

Vehicle Barrier Gate Applications:

Station
Highway toll gate
High-grade residential area
Commercial parking lots
Enterprises and institutions
Commercial Plaza
