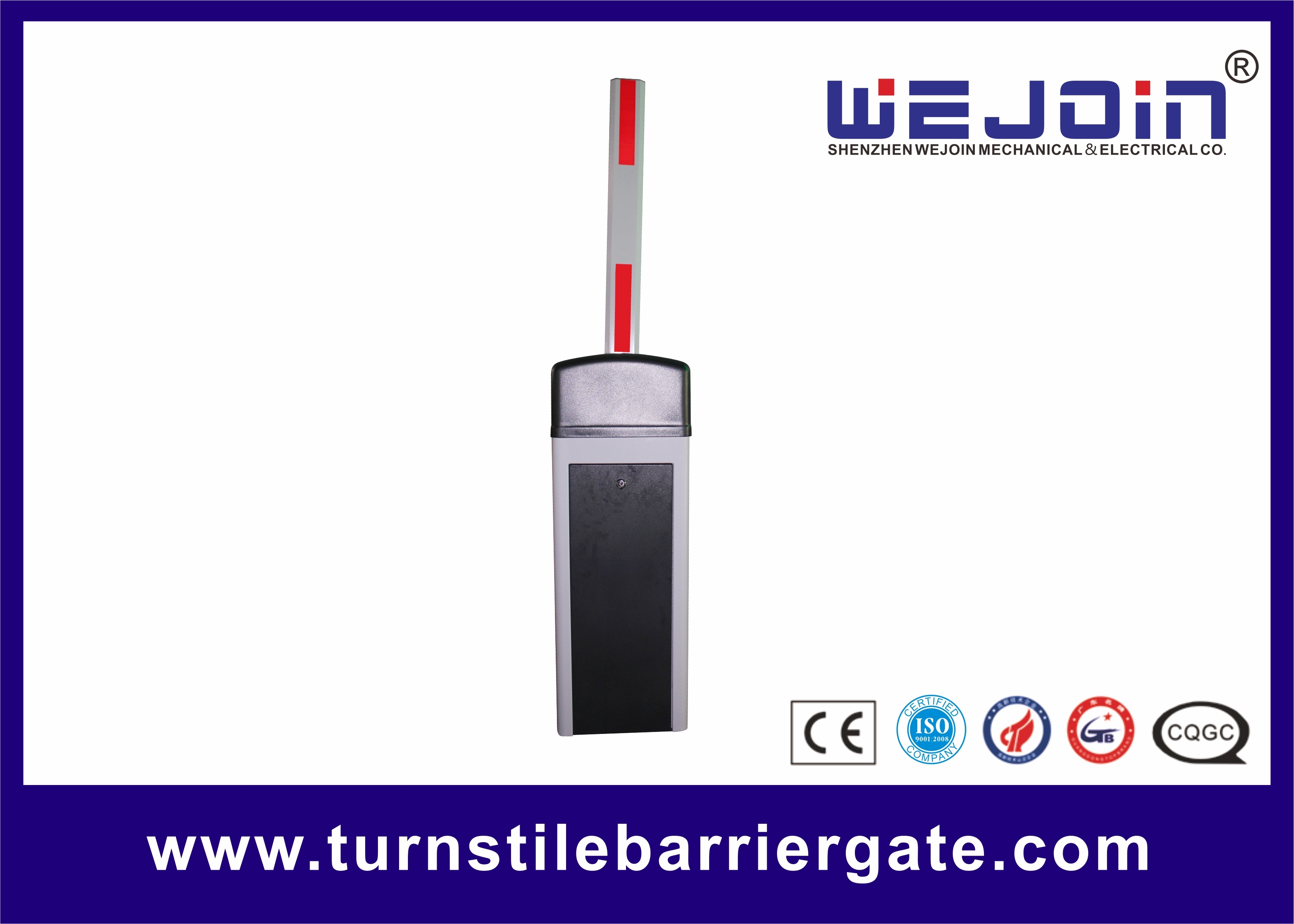

DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface

1 세트
MOQ
협상 가능
가격
DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
특징: 장애물에 대한 자동 리버스
모터: DC24V 브러시리스 모터
속도: 1.5S-6
힘: 180W
붐 유형: 직선 팔
전압: AC100-265V
강조하다:

DC24V boom barrier gate

,

10A power supply boom barrier

,

RS485 interface boom gate

기본 정보
원래 장소: 중국
브랜드 이름: WEJOIN
인증: CE ISO SGS
모델 번호: DZ801
결제 및 배송 조건
포장 세부 사항: 판지 상자
배달 시간: 지불을받은 후 15 일
지불 조건: t/t
공급 능력: 10000 세트/월
제품 설명

DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface


Parking Barrier Gate Functional Features

1. DC frequency conversion motor drive, the use of connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life of up to 4.5 million times or more, spring life of up to 500,000 times.

2. The whole series is equipped with the function of rebound in case of obstruction as standard, the barrier gate arm will return automatically in case of obstruction in the process of descending.

3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power supply output, can power supply for external radar.

4. support RS485 communication or RS485 folio online.

5. optional bluetooth module, convenient to debug anti-barrier door through small program.

6. large LCD display, Chinese visualization menu, convenient for function selection and debugging. 7. Left and right are interchangeable.

8. 1.5~6 seconds adjustable speed of opening and closing.


Barrier Gate Packing List

Name

Specification

Quantity

Unit

Application

Screws, Nuts, Flat Pad

M12*70

2

sets

Fixing the boom

Boom Fixing Bar



1

pcs

Fixing the boom

Boom Holder Plastic Cover



1

sets

Optional

Cabinet Fixing Bar



2

pcs

Fixing the cabinet

Expansion Screws

M16*150

4

sets

Fixing the cabinet

Support Post



1

pc

Optional

Radio Emitter



1

pcs

Optional

Keys



2

pcs

For the cabinet door

Remote Controller



2

pcs



Manual



1

pcs



Wire Control Interface

This interface is available for parking system, also available for external controller to control barrier gate.

UP: Short circuit “UP” and “GND”

Down: Short circuit “Down” and “GND”

Stop: Short circuit “Stop” and “GND”


Valid time of loop detector signal

In the process of opening or up limit position, the duration time of the loop detector signal needs to exceed the setting time, and the auto-closing action will be executed after the loop detector signal disappears, avoiding that the loop detector signal is too short and triggers the auto-closing action to hit the vehicles. The default time is 200ms. Range: 100ms-900ms.


DC24V 10A Power Supply 6m Straight Boom Barrier Gate with RS485 Interface 0
