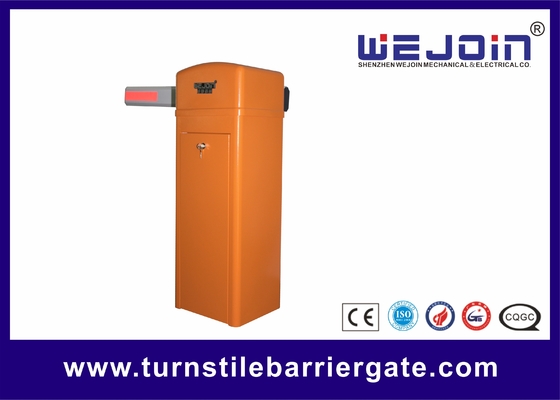

100-265V AC Access Control 4-6m Telescopic Arm Barrier Gate for Parking Lot

1 세트
MOQ
협상 가능
가격
100-265V AC Access Control 4-6m Telescopic Arm Barrier Gate for Parking Lot
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
특징: 장애물에 대한 자동 리버스
모터: DC24V 브러시리스 모터
속도: 1.5S-6
힘: 180W
붐 유형: 직선 팔
전압: AC100-265V
강조하다:

4-6m telescopic arm boom barrier gate

,

100-265V AC parking lot barrier gate

,

access control telescopic arm gate

기본 정보
원래 장소: 중국
브랜드 이름: WEJOIN
인증: CE ISO SGS
모델 번호: DZ801
결제 및 배송 조건
포장 세부 사항: 판지 상자
배달 시간: 지불을받은 후 15 일
지불 조건: t/t
공급 능력: 10000 세트/월
제품 설명

100-265V AC Access Control 4-6m Telescopic Arm Barrier Gate for Parking Lot


Parking Barrier Gate Technical Data

Model: WJDZ04VF (speed 1.5 - 6s adjustable)

Running Speed: 1.5 - 6s,

Boom-Type: Straight, 90° Folding, 180° Folding, 2 Fence, 3 Fence

Max Boom Length: 3 - 6m, 5m, 4m, 4.5m, 4m

Housing Dimension: 336*325*1030MM, 335*285*920MM

Input Voltage: AC100 - 265V

Frequency: 50/60HZ

Motor Voltage: DC24V

Enclosure Rating: IP54

Working Temperature: -30℃ ~ +70℃

MTBF: 4000000 times

Traffic Flow Application: 3000 times/24 hours

Max Motor Power: 180W

Max Motor Speed: 500r/min

Max Torque: 260N.m


Barrier Gate Packing List

Name

Specification

Quantity

Unit

Application

Screws, Nuts, Flat Pad

M12*70

2

sets

Fixing the boom

Boom Fixing Bar



1

pcs

Fixing the boom

Boom Holder Plastic Cover



1

sets

Optional

Cabinet Fixing Bar



2

pcs

Fixing the cabinet

Expansion Screws

M16*150

4

sets

Fixing the cabinet

Support Post



1

pc

Optional

Radio Emitter



1

pcs

Optional

Keys



2

pcs

For the cabinet door

Remote Controller



2

pcs



Manual



1

pcs



Warranty and Service Items

1. Free service is offered for component parts in one year warranty time. (not includes the barrier boom or remote)

2. Lifetime service with charge accordingly.

3. Technical questions are supported.

4. The below items and situations are not included in the range of free service:

4.1. The user does not follow the instruction and cause any damage of the product.

4.2. The power supply is not stable, over the range of permitted voltage or not accordant to safety electric using standard.

4.3. The user installs or uses the product in wrong methods, cause damage to the appearance of product.

4.4. Natural disaster causes damage to the product.

4.5. Warranty time is over.

4.6. Service items are out of our promises.



Wire Control Interface

This interface is available for parking system, also available for external controller to control barrier gate.

UP: Short circuit “UP” and “GND”

Down: Short circuit “Down” and “GND”

Stop: Short circuit “Stop” and “GND”


100-265V AC Access Control 4-6m Telescopic Arm Barrier Gate for Parking Lot 0
