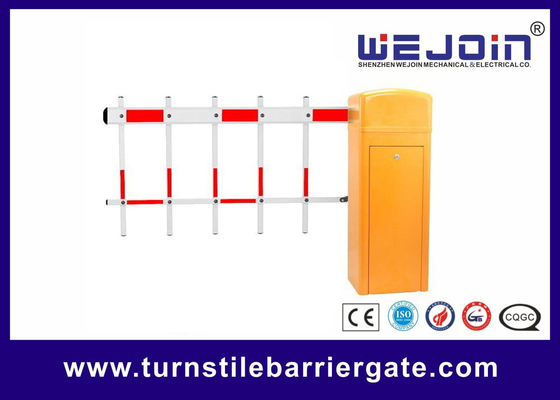

100-265V AC High-Grade Residential Area Access Control 4.5m Fence Arm Barrier Gate

1 세트
MOQ
협상 가능
가격
100-265V AC High-Grade Residential Area Access Control 4.5m Fence Arm Barrier Gate
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
특징: 장애물에 대한 자동 리버스
모터: DC24V 브러시리스 모터
속도: 1.5S-6
힘: 180W
붐 유형: 직선 팔
전압: AC100-265V
강조하다:

residential access control barrier gate

,

4.5m fence arm boom barrier

,

100-265V AC boom barrier gate

기본 정보
원래 장소: 중국
브랜드 이름: WEJOIN
인증: CE ISO SGS
모델 번호: DZ801
결제 및 배송 조건
포장 세부 사항: 판지 상자
배달 시간: 지불을받은 후 15 일
지불 조건: t/t
공급 능력: 10000 세트/월
제품 설명

100-265V AC High-Grade Residential Area Access Control 4.5m Fence Arm Barrier Gate


Parking Barrier Gate Technical Data

Model: WJDZ04VF (speed 1.5 - 6s adjustable)

Running Speed: 1.5 - 6s,

Boom-Type: Straight, 90° Folding, 180° Folding, 2 Fence, 3 Fence

Max Boom Length: 3 - 6m, 5m, 4m, 4.5m, 4m

Housing Dimension: 336*325*1030MM, 335*285*920MM

Input Voltage: AC100 - 265V

Frequency: 50/60HZ

Motor Voltage: DC24V

Enclosure Rating: IP54

Working Temperature: -30℃ ~ +70℃

MTBF: 4000000 times

Traffic Flow Application: 3000 times/24 hours

Max Motor Power: 180W

Max Motor Speed: 500r/min

Max Torque: 260N.m


Barrier Gate Spring Selection Table

Boom Type

Boom Length

(Meters: M)

Spring Diameter

Φ (mm)

Quantity of Springs

(pieces)

Straight Boom without Rubber










6≥L≥5.8

3.8

5

5.7≥L>5

3.8

4

5≥L≥3.8

3.8

3

3.7≥L≥2.8

3.8

2

Straight Boom with Rubber










6≥L≥5.5

3.8

5

5.4≥L≥4.8

3.8

4

4.7≥L≥3.8

3.8

3

3.7≥L≥2.8

3.8

2


Warranty and Service Items

1. Free service is offered for component parts in one year warranty time. (not includes the barrier boom or remote)

2. Lifetime service with charge accordingly.

3. Technical questions are supported.

4. The below items and situations are not included in the range of free service:

4.1. The user does not follow the instruction and cause any damage of the product.

4.2. The power supply is not stable, over the range of permitted voltage or not accordant to safety electric using standard.

4.3. The user installs or uses the product in wrong methods, cause damage to the appearance of product.

4.4. Natural disaster causes damage to the product.

4.5. Warranty time is over.

4.6. Service items are out of our promises.



Fence boom installation

Step 1. Fix the boom holder press board on boom with 2pcs of M12*70mm hexagon screw.

Step 2. Press the board by hand, then lift up the boom vertically and install it on the boom holder. Install the flat washer, spring washer, and M12 nut on the screw in turn, and fix the screw with a wrench.

Step 3. Fix the bearing of the connecting unit to the cone axis on barrier with screw.

Step 4. Fix the bottom fence to the connecting unit, then release the 2pcs screw of the unit and adjust them to make the fence be perpendicular to the ground.


100-265V AC High-Grade Residential Area Access Control 4.5m Fence Arm Barrier Gate 0
