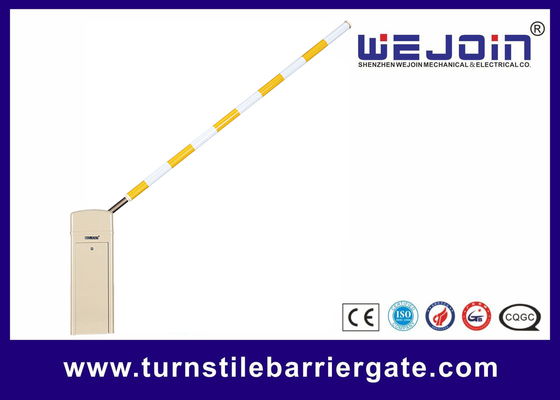

High-Grade Residential Area Access Control 6m Straight Aluminum Arm Barrier Gate for Parking Management

1 세트
MOQ
협상 가능
가격
High-Grade Residential Area Access Control 6m Straight Aluminum Arm Barrier Gate for Parking Management
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
특징: 장애물에 대한 자동 리버스
모터: DC24V 브러시리스 모터
속도: 1.5S-6
힘: 180W
붐 유형: 직선 팔
전압: AC100-265V
강조하다:

6m aluminum boom barrier gate

,

residential parking access control gate

,

straight arm barrier gate with warranty

기본 정보
원래 장소: 중국
브랜드 이름: WEJOIN
인증: CE ISO SGS
모델 번호: DZ801
결제 및 배송 조건
포장 세부 사항: 판지 상자
배달 시간: 지불을받은 후 15 일
지불 조건: t/t
공급 능력: 10000 세트/월
제품 설명

High-Grade Residential Area Access Control Black Color 6m Straight Aluminum Arm Barrier Gate


Parking Barrier Gate Technical Data

Model: WJDZ04VF (speed 1.5 - 6s adjustable)

Running Speed: 1.5 - 6s,

Boom-Type: Straight, 90° Folding, 180° Folding, 2 Fence, 3 Fence

Max Boom Length: 3 - 6m, 5m, 4m, 4.5m, 4m

Housing Dimension: 336*325*1030MM, 335*285*920MM

Input Voltage: AC100 - 265V

Frequency: 50/60HZ

Motor Voltage: DC24V

Enclosure Rating: IP54

Working Temperature: -30℃ ~ +70℃

MTBF: 4000000 times

Traffic Flow Application: 3000 times/24 hours

Max Motor Power: 180W

Max Motor Speed: 500r/min

Max Torque: 260N.m


Parking Barrier Gate Functions & Features

1. Motor Functions & Features Self - developed DC24V brushless motor, with stable and reliable worm gear and planetary reduction transmission structure, large torque, and wear resistance.

2. Control System Functions & Features DC variable - frequency control system, precise control, more flexible running, less mechanical impact and longer service life.

3. Auto - reversing on Obstruction Functions & Features Sensitive, responsive, safe and reliable.

4. Item Control Panel Functions & Features Large LCD screen display, English visual menu, simple maintenance and easy operation.

5. Remote Controller Functions & Features 433MHZ, simple to add remote controllers.

6. Operation during Power - off Functions & Features Turn the handwheel or lift the boom manually to realize the boom up and down, and it can also be powered by a DC24V battery, or open one time by a super capacitor backup.

7. Motorcade Passing, Counting, Auto - aging Test, Delay Auto - closing, Relay Signal Output, RS485 Communication Functions & Features Support

8. Loop Detector, Infrared Photocell, Radar Functions & Features Optional

9. Warranty Period Functions & Features 24 months for motor and control board


Mechanism Installation Direction Change

This barrier mechanism can be both left-installed and right-installed. The users can change the installation direction according to the actual situation. We will take the left-installed barrier mechanism as an example, and the operation steps for changing to the right-installed are as follows:

1. Take out the 10MM screw by turning 8MM Allen wrench counterclockwise

2. Push out the boom holder by turning wrench clockwise with a 14MM*150 screw

3. Turn the mechanism 180 degrees vertically

4. Put the mechanism into the cabinet

5. Assemble the boom holder back, and fix the 10MM screw by turning 8MM Allen wrench clockwise


Barrier Gate Spring Selection Table

Boom Type

Boom Length

(Meters: M)

Spring Diameter

Φ (mm)

Quantity of Springs

(pieces)

Straight Boom without Rubber










6≥L≥5.8

3.8

5

5.7≥L>5

3.8

4

5≥L≥3.8

3.8

3

3.7≥L≥2.8

3.8

2

Straight Boom with Rubber










6≥L≥5.5

3.8

5

5.4≥L≥4.8

3.8

4

4.7≥L≥3.8

3.8

3

3.7≥L≥2.8

3.8

2


High-Grade Residential Area Access Control 6m Straight Aluminum Arm Barrier Gate for Parking Management 0
