High-Performance Anti-Collision Arm Swing Out Boom Barrier for Toll Gate Management in Busy Stations
Parking Barrier Gate Applications

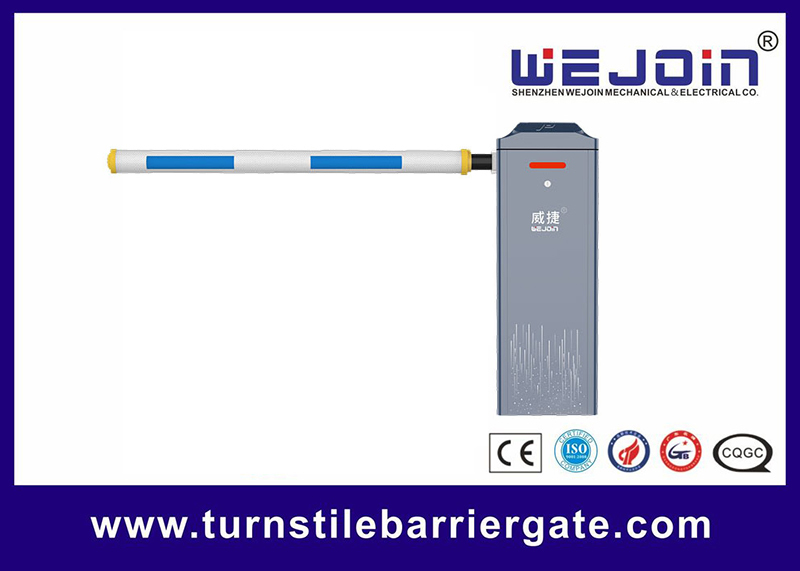

The product consists of four parts: cabinet, transmission mechanism, control unit, and boom. It distinguishes between left-installed and right-installed, and it is used for entrance and exit control systems of parking lot.
This product is divided into two types: barrier gate work with round carbon fiber boom and barrier gate with round aluminum boom.
Barrier Gate Technical Data
|
Working temperature (motor) |
-35℃~ + 70℃ |
|
Power supply input voltage |
AC100~265V |
|
Controller input voltage |
DC24V±10%, 10A |
|
Motor power |
240W |
|
Relative Humidity |
30%~80%, No condensation |
|
Distance of remote control |
open and undisturbed, L≤50M |
|
Running Speed |
0.6~4 seconds adjustable |
|
MTBF |
6,000,000 times |
Malfunction Phenomenon:The opening speed is fast at the first power-on
Possible Causes :The power-on self-learning speed of P-13 is too fast.
Solution:Reduce 1-XX and 2-XX of P-13.
Malfunction Phenomenon:When manually finding the limit, the barrier can’t open or close to limit position, and the buzzer alarms
Possible Causes :The power-on self-learning speed of P-13 is too slow.
Solution:Increase 1-XX and 2-XX of P-13, and try again.
Malfunction Phenomenon:The controller displays IDLE
Possible Causes 1 : The motor sensor plug is not plugged in.
Solution 1: Insert the motor sensor plug well.
Possible Causes 2: Motor sensor failure.
Solution 2: Replace the motor.
