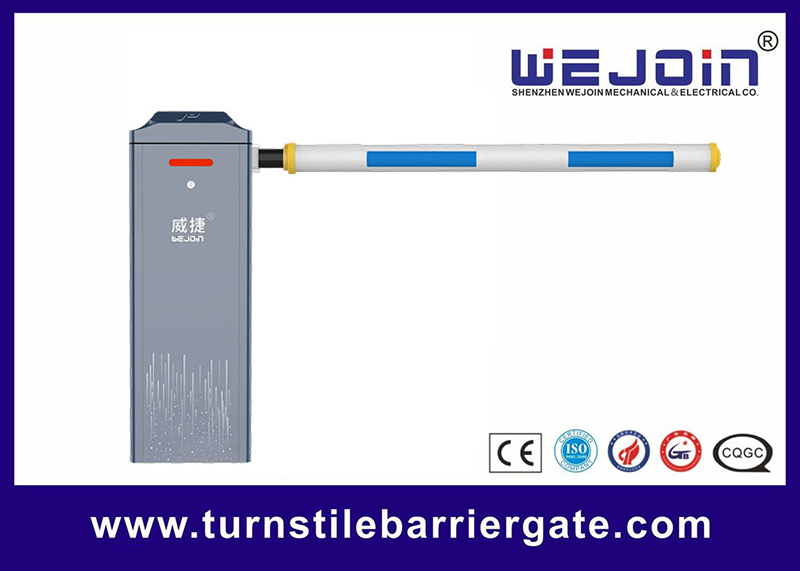

Advanced Anti-collision Arm Swing Out Boom Barrier for Toll Gate Management
Parking Barrier Gate Applications
Public Transportation Stations – Used in bus terminals, subway stations, and train stations to regulate vehicle access.
Highway Toll Gates – Installed at expressway entrances and exits to manage toll collection and traffic flow.
High-End Residential Communities – Ensures secure entry and exit for residents while preventing unauthorized access.
Commercial Parking Lots – Deployed in shopping malls, office buildings, and hotels to control vehicle movement and optimize space usage.
Corporate & Institutional Facilities – Implemented in government buildings, hospitals, schools, and business parks to enhance security and parking management.
Barrier Gate Technical Data
1. Working temperature (motor): -35℃~ + 70℃
2. Power supply input voltage: AC100~265V
3. Controller input voltage: DC24V±10%, 10A
4. Motor power: 240W
5. Relative Humidity: 30%~80%, No condensation
6. Distance of remote control: open and undisturbed, L≤50M
7. Running Speed: 0.6~4 seconds adjustable
8. MTBF: 6,000,000 times
|
Model |
WJCB05 |
| Running Speed (Seconds: S) | 0.6~1.5S |
| Boom Type | Round Carbon Fiber Boom |
| Max Boom Length (Meters: M) | 3~4M |
| Cabinet Dimension (W*D*H) | 335*285*976MM |
| Power Supply Input Voltage | AC100~265V |
| Control Board Input Voltage | DC24V±10%, 10A |
| Motor Voltage | DC24V |
| Enclosure Rating | IP54 |
|
Working Temperature |
-35℃~ + 70℃ |
|
MTBF |
6,000,000 times |
|
Duty Cycle |
100% |
|
Traffic Flow Application |
24 hours uninterrupted operation |
