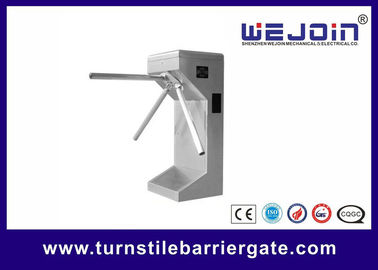

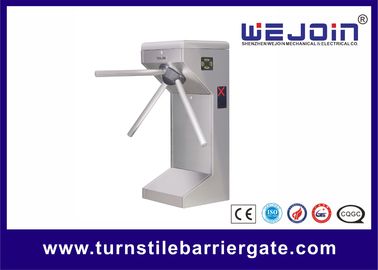

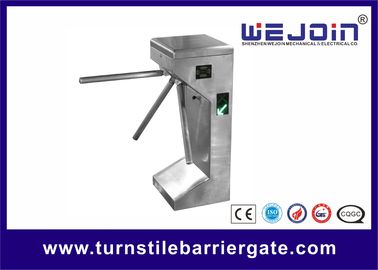

Vertical-typed Tripod Turnstile Used in Corporations and High-level Community

기본 정보
원래 장소: 광 동, 중국
브랜드 이름: WEJOIN
인증: CE;ISO
모델 번호: WJTS122
최소 주문 수량: 1SET
가격: USD+620-680+set
포장 세부 사항: 나무 케이스
지불 조건: T는 / T
공급 능력: 3000+setsr+per 달
상세 정보
주택의 재료: 304 스테인레스 강 막대기의 길이: 490 밀리미터
회전 방향: 두배 방향 모터의 작업 전압: DC12V
하이 라이트:

보행자 울타리 게이트

,

보안상 입구 게이트

,

수직 활자로 된 3각 회전식 십자문


제품 설명

Functions & Features



 Full-automatic type

(1). Stainless steel Housing.

(2). Bi-direction pass.

(3). Arms auto drop when power off.

(4). Arms auto rise up when power on and auto stop on obstacle.

(5). Traffic light indicator.

(6). Wingen 26/Dry contact, is compatible with smart card for access control.

(7). Photoelectric inspection.

(8). If the passenger does not pass in valid time, the passage will be locked up. And the valid passing time can be set up by operator.

(9). Passenger counters (optional).



                                          Model
Item
WJTS122
Manual, Semi or Full-automatic Full-automatic
Material of Housing 304 Stainless Steel
Thickness of Housing 1.50mm
Dimension of Housing
(L×W×H mm)
420×380×1000
Length of Pole (out of housing) 490mm
Net Weight 50kg
Max Load-bearing of Pole 80kg
Driving Force of Pole 3kg
Rotating Direction Double Direction
Power Supply 220V±10%, 110V±10%
Frequency 50/60HZ
Working Voltage of Motor DC12V
Rated Power 50W
Driving Motor Brush DC Motor
Communication Interface RS232 standard socket/LAN socket
Input Interface DC12V electrical leveel signal, more than 10ms, or DC12V impulse signal driveing current, more 10mA
Transit Speed 20~35 persons/min
Working Temperature 15°C~55°C
Working Environment Indoor / Outdoor (Shelter)
Relative Humidity ≤90%, no condensation
