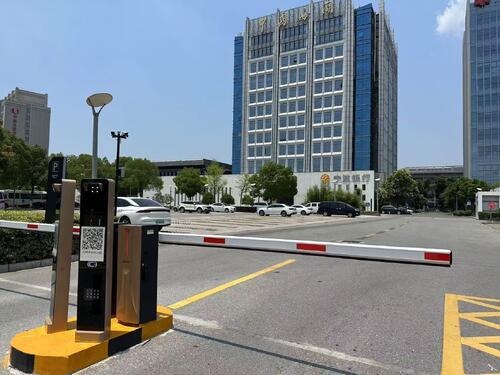

E40Pro Barrier Gate for Business Park Parking Lot

Project Overview

This project is a parking access control solution for the parking lot of a government and business office complex. The site has one-in-one-out lanes with a clear width of 4.5 meters. E40Pro barrier gates with 4.5m straight arm are deployed, equipped with non-spring machine core. The entrance is located in an open-air outdoor parking lot. The traffic mainly consists of commuter passenger cars, with concentrated traffic during morning and evening peak hours and high daily opening-closing frequency. The project requires stable operation, long-term reliability and low maintenance demand. The gates are integrated with license plate recognition systems and QR code payment terminals to realize unmanned self-service access.

Hardware Specifications

• Barrier gate model: E40Pro
• Boom specification: 4.5m straight arm
• Core mechanism: non-spring machine core, eliminating traditional balance spring structure
• Drive mode: DC variable frequency motor drive
• Boom speed: adjustable from 2s to 6s
• Operating temperature: -30℃～70℃
• Input voltage: AC100～265V wide voltage adaptation
• Protection class: IP54, suitable for open-air outdoor conditions

Implementation Key Points

1. Foundation installation: Concrete foundation is poured on site, and the cabinet is fixed with expansion bolts to ensure the body is horizontal and reduce operation vibration and noise.
2. Boom assembly: The 4.5m straight arm is firmly connected to the mechanism output shaft through a special arm connector. Horizontal and vertical limits are pre-calibrated before delivery, requiring no complex on-site adjustment.
3. System integration: Connected with ANPR all-in-one machines and QR code payment terminals to realize automatic opening upon vehicle recognition and automatic release after payment. The non-spring machine core achieves dynamic balance through motor torque, eliminating on-site spring tension adjustment and greatly shortening commissioning time.
4. Safety configuration: Standard obstacle rebound function automatically lifts the boom when encountering obstacles during closing. It supports external loop coils and infrared anti-crush devices, providing multiple safety protection against vehicle damage.

Project Operation Benefits

For conventional spring barrier gates under frequent start-stop scenarios, balance springs are prone to fatigue attenuation and elasticity decline, requiring regular adjustment and replacement, which leads to high operation and maintenance costs. The E40Pro adopts non-spring machine core, removing vulnerable spring parts and reducing mechanical wear points, which significantly lowers long-term maintenance frequency and cost. The 4.5m straight arm fully covers the standard lane width. With DC variable frequency drive, the boom lifts and lowers smoothly without impact, adapting to the concentrated traffic during peak hours in office parks. After deployment, the parking lot realizes fully unmanned management with improved traffic efficiency and stable equipment performance, meeting the high-quality access management requirements of government and business office areas.
